Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
	CT-06-50 CURR SENSE XFMR T/H KEMET	240	12.23	RFQ	Datasheet	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	500:1	500:1	-	-	Through Hole	0.882 L x 0.709 W (22.40mm x 18.00mm)	0.280 (7.10mm)
	CT-06-100 CURR SENSE XFMR T/H KEMET	147	12.23	RFQ	Datasheet	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	1000:1	1000:1	-	-	Through Hole	0.882 L x 0.709 W (22.40mm x 18.00mm)	0.280 (7.10mm)

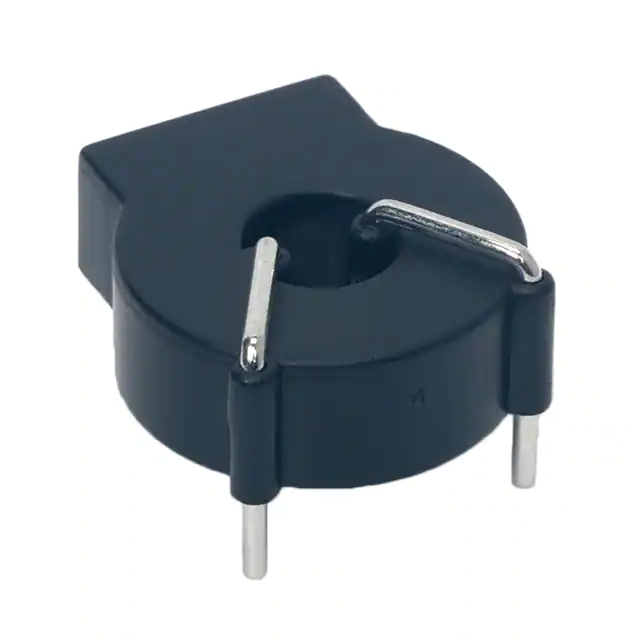

	MR/C-01B ZERO-PHASE CURRENT TRANSFORMERS KEMET	649	6.70	RFQ	Datasheet	Bulk	MR	Active	60Hz	Non-Invasive (Solid Core)	-	-	-	-	-	30Ohm	-	Through Hole	0.748 L x 0.689 W (19.00mm x 17.50mm)	0.311 (7.90mm)

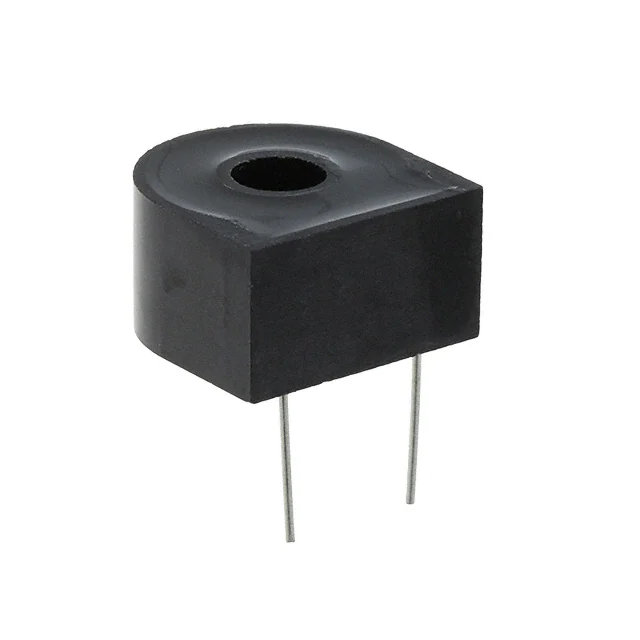

	CT-05 CURR SENSE XFMR T/H KEMET	2,213	8.92	RFQ	Datasheet	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	500:1	500:1	-	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.394 (10.00mm)

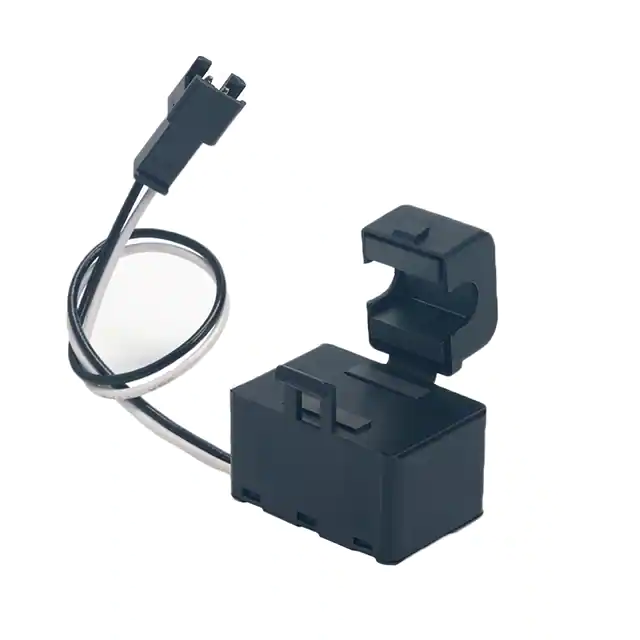

	C/CT-0306 CURRENT SENSORS, SNAP-ON TYPE KEMET	140	15.73	RFQ	Datasheet	Bulk	C/CT	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	30 A	-	-	-	-	-	-	Chassis Mount	1.134 L x 0.764 W (28.80mm x 19.40mm)	1.114 (28.30mm)

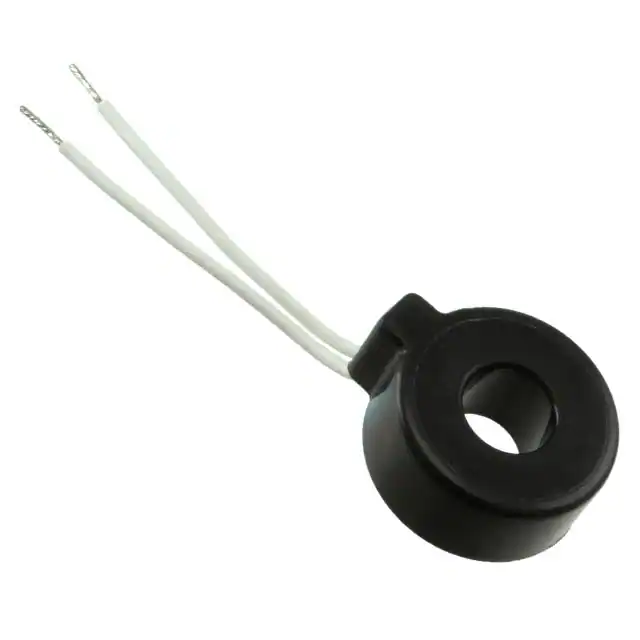

	MR-4 CURR SENSE XFMR CHAS MNT KEMET	270	22.52	RFQ	Datasheet	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Chassis Mount	1.358 L x 1.260 W (34.50mm x 32.00mm)	0.425 (10.80mm)
	MR-1 CURR SENSE XFMR CHAS MNT KEMET	2,841	13.36	RFQ	Datasheet	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Chassis Mount	0.882 L x 0.760 W (22.40mm x 19.30mm)	0.327 (8.30mm)

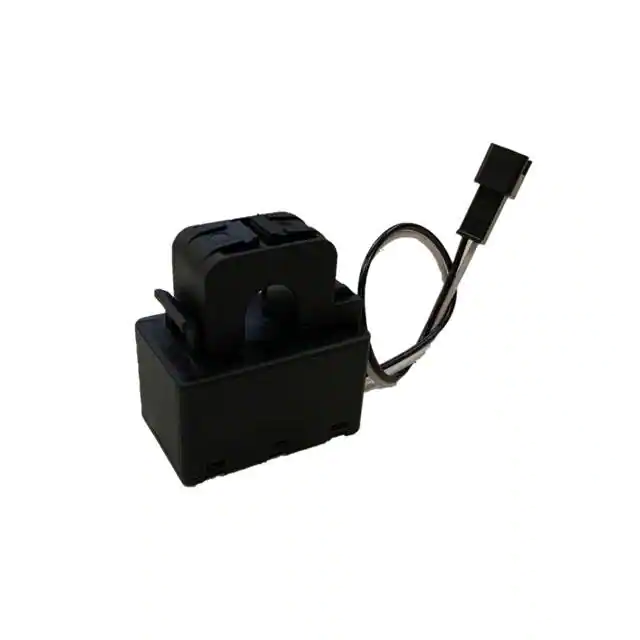

	C/CT-0810 C/CT-, CURRENT SENSORS, SNAP-ON KEMET	3,415	22.25	RFQ	Datasheet	Box	C/CT	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	80 A	-	-	3000:1	3000:1	-	-	Chassis Mount	1.476 L x 1.390 W (37.50mm x 35.30mm)	0.902 (22.90mm)

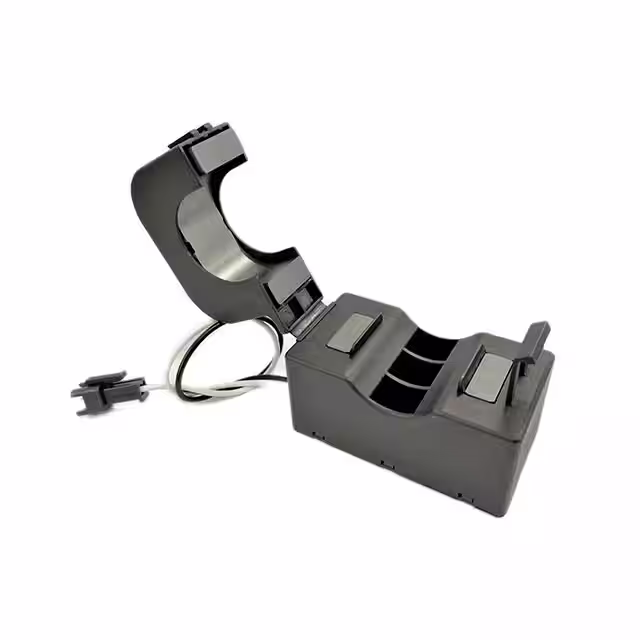

	C/CT-2524 C/CT-, CURRENT SENSORS, SNAP-ON KEMET	2,516	50.98	RFQ	Datasheet	Bulk	C/CT	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	250 A	-	-	-	2000:1	-	-	Chassis Mount	2.276 L x 1.220 W (57.80mm x 31.00mm)	2.161 (54.90mm)

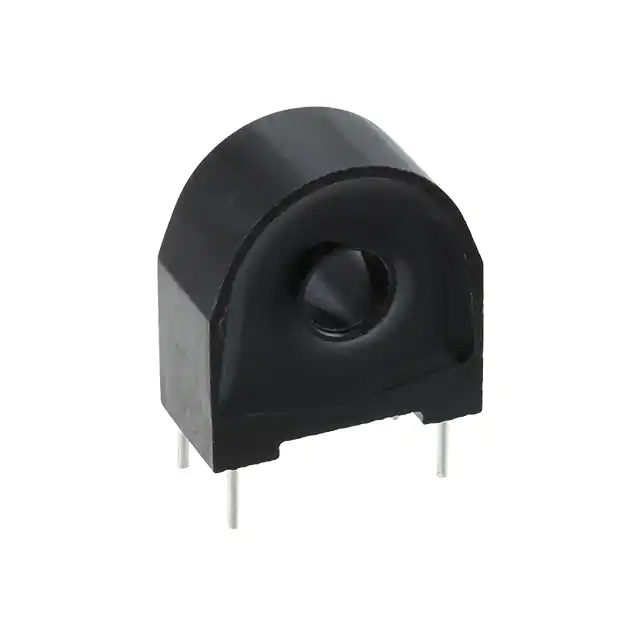

	CT-07-100 CURR SENSE XFMR T/H KEMET	2,689	12.85	RFQ	Datasheet	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	1000:1	1000:1	-	-	Through Hole	0.748 L x 0.394 W (19.00mm x 10.00mm)	0.795 (20.20mm)

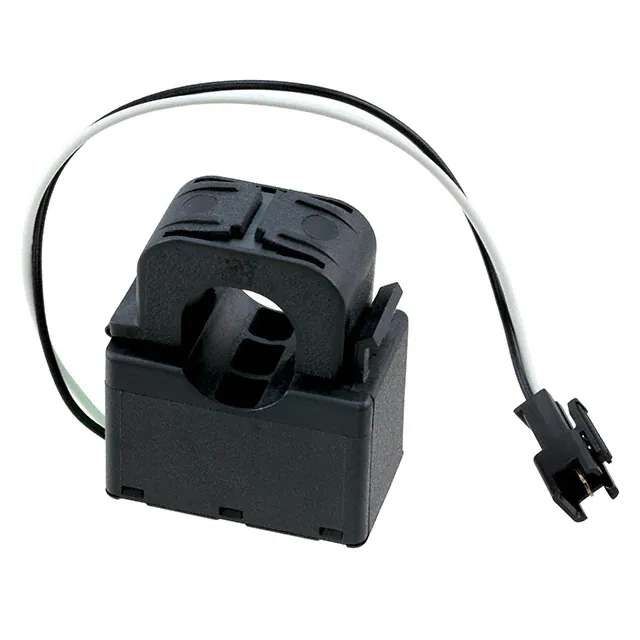

	C/CT-1216 CURR SENSE XFMR 120A CHAS MNT KEMET	2,480	22.22	RFQ	Datasheet	Bulk	C/CT	Active	50/60Hz	Non-Invasive (Split Core)	120 A	-	-	3000:1	3000:1	-	-	Chassis Mount	1.445 L x 0.906 W (36.70mm x 23.00mm)	1.693 (43.00mm)
	MR/C-01 SENSCURR 0PH ID6.0MM OD19.0MM ZC KEMET	3,699	5.85	RFQ	Datasheet	Bulk	MR/C	Active	-	Invasive	15 A	-	-	-	-	-	-	Through Hole	0.748 L x 0.689 W (19.00mm x 17.50mm)	0.264 (6.70mm)

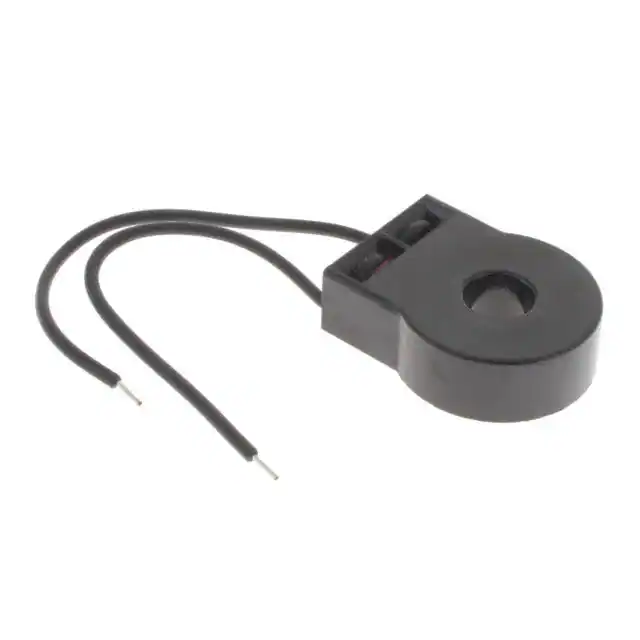

	CT-06-75 SENSCURR LOW CT-06-75 7AAC KEMET	3,112	9.85	RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Through Hole	0.882 L x 0.709 W (22.40mm x 18.00mm)	0.280 (7.10mm)
	MR-2 CURR SENSE XFMR CHAS MNT KEMET	3,095	13.61	RFQ	Datasheet	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Chassis Mount	0.972 L x 0.858 W (24.70mm x 21.80mm)	0.327 (8.30mm)
	MR-3 CURR SENSE XFMR CHAS MNT KEMET	2,548	18.56	RFQ	Datasheet	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Chassis Mount	1.201 L x 1.102 W (30.50mm x 28.00mm)	0.413 (10.50mm)
	CT-07-50 CURR SENSE XFMR T/H KEMET	2,224	6.31	RFQ	Datasheet	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	500:1	500:1	-	-	Through Hole	0.748 L x 0.394 W (19.00mm x 10.00mm)	0.795 (20.20mm)

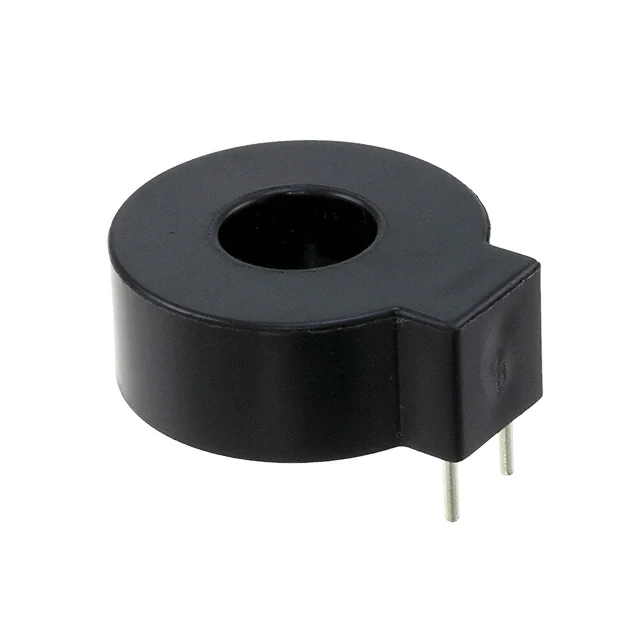

	MR-1-P5 CURR SENSE XFMR T/H KEMET	3,444	5.80	RFQ	Datasheet	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Through Hole	0.858 L x 0.760 W (21.80mm x 19.30mm)	0.335 (8.50mm)
	USEX1216000000 V KEMET	2,656	0.00	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
