Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

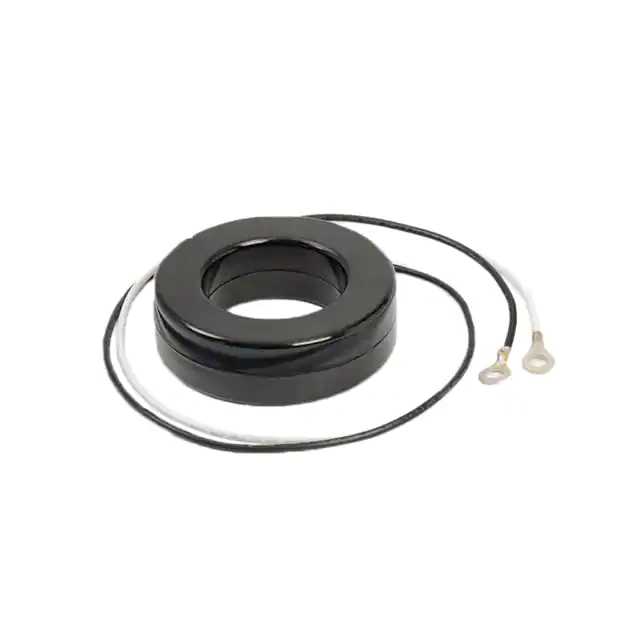

01298 CURRENT XFMR, DONUT, 150/5 AMPS Simpson Electric	3,666	75.24	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	150 A	-	-	30:1	-	-	-	Free Hanging (In-Line)	3.560 Dia (90.42mm)	1.100 (27.94mm)
01301 CURRENT XFMR, DONUT, 500/5 AMPS Simpson Electric	3,871	0.00	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	500 A	-	-	100:1	500:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.42mm)	1.100 (27.94mm)
37031 SPLIT CORE CURRENT XFMR; 100/5A Simpson Electric	3,339	0.00	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	DIN Rail	3.661 L x 1.575 W (93.00mm x 40.00mm)	4.173 (106.00mm)
02459 CURRENT XFMR, DONUT, 750/5 AMPS Simpson Electric	3,761	0.00	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	750 A	-	-	150:1	-	-	-	Free Hanging (In-Line)	4.500 Dia (114.30mm)	1.090 (27.69mm)
37028 CURRENT TRANS. 3 PHASE 150:5 Simpson Electric	2,041	202.01	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	150:5	-	-	Chassis Mount	7.130 L x 2.220 W (181.10mm x 56.39mm)	3.220 (81.79mm)
37034 SPLIT CORE CURRENT XFMR; 600/5A Simpson Electric	2,299	146.52	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	600 A	-	-	-	-	-	-	DIN Rail	4.252 L x 2.008 W (108.00mm x 51.00mm)	4.921 (125.00mm)
01299 CURRENT XFMR, DONUT, 200/5 AMPS Simpson Electric	2,932	71.96	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	200 A	-	-	40:1	-	-	-	Free Hanging (In-Line)	3.560 Dia (90.42mm)	1.100 (27.94mm)
01305 CURRENT XFMR, DONUT, 400/5 AMPS Simpson Electric	3,364	71.47	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	400 A	-	-	80:1	-	-	-	Free Hanging (In-Line)	3.560 Dia (90.42mm)	1.100 (27.94mm)

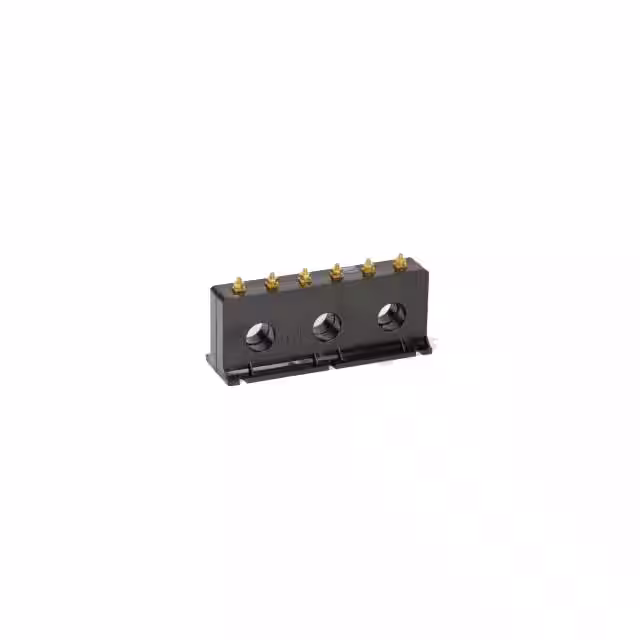

37030 CURRENT TRANS. 3 PHASE 300:5 Simpson Electric	2,996	183.93	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	300:5	-	-	Chassis Mount	7.130 L x 2.220 W (181.10mm x 56.39mm)	3.220 (81.79mm)
02304 CURRENT XFMR, DONUT, 1000/5 AMPS Simpson Electric	2,426	100.57	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	1000 A	-	-	200:1	-	-	-	Free Hanging (In-Line)	4.500 Dia (114.30mm)	1.090 (27.69mm)
37023 CURRENT XFMR, SCREW, 300/5 AMPS Simpson Electric	2,698	54.72	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	3.780 L x 3.530 W (96.01mm x 89.66mm)	2.150 (54.61mm)
37033 SPLIT CORE CURRENT XFMR; 400/5A Simpson Electric	3,842	146.52	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	400 A	-	-	-	-	-	-	DIN Rail	4.252 L x 2.008 W (108.00mm x 51.00mm)	4.921 (125.00mm)
37032 SPLIT CORE CURRENT XFMR; 200/5A Simpson Electric	3,413	146.52	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	200 A	-	-	-	-	-	-	DIN Rail	3.661 L x 1.575 W (93.00mm x 40.00mm)	4.173 (106.00mm)
37026 CURRENT TRANS. 3 PHASE 50:5 Simpson Electric	3,116	0.00	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	50:5	-	-	Chassis Mount	7.130 L x 2.220 W (181.10mm x 56.39mm)	3.220 (81.79mm)
37020 CURRENT XFMR, SCREW, 100/5 AMPS Simpson Electric	3,815	56.05	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	3.780 L x 3.530 W (96.01mm x 89.66mm)	2.150 (54.61mm)
37022 CURRENT XFMR, SCREW, 200/5 AMPS Simpson Electric	2,074	46.14	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	3.780 L x 3.530 W (96.01mm x 89.66mm)	2.150 (54.61mm)

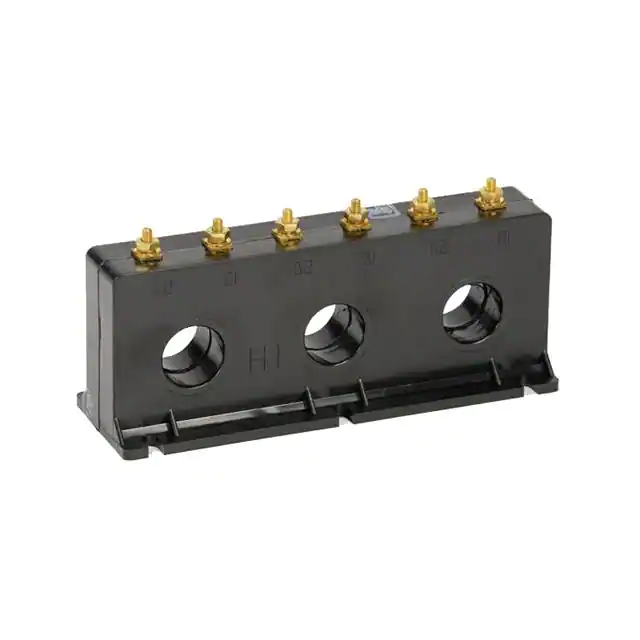

37027 CURRENT TRANS. 3 PHASE 100:5 Simpson Electric	3,039	175.29	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	100:5	-	-	Chassis Mount	7.130 L x 2.220 W (181.10mm x 56.39mm)	3.220 (81.79mm)
37021 CURRENT XFMR, SCREW, 150/5 AMPS Simpson Electric	3,462	44.02	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	3.780 L x 3.530 W (96.01mm x 89.66mm)	2.150 (54.61mm)
37024 CURRENT XFMR, SCREW, 500/5 AMPS Simpson Electric	2,199	82.74	RFQ	Datasheet	Retail Package	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	3.780 L x 3.530 W (96.01mm x 89.66mm)	2.150 (54.61mm)
01300 CURRENT XFMR, DONUT, 300/5 AMPS Simpson Electric	2,066	72.00	RFQ	Datasheet	Retail Package	-	Active	-	Non-Invasive (Solid Core)	300 A	-	-	60:1	-	-	-	Free Hanging (In-Line)	3.560 Dia (90.42mm)	1.100 (27.94mm)
