Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
	101990029 CURR SENSE XFMR 100A:0.05A 100A Seeed Technology Co., Ltd	3,957	11.50	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	Chassis Mount	-	-

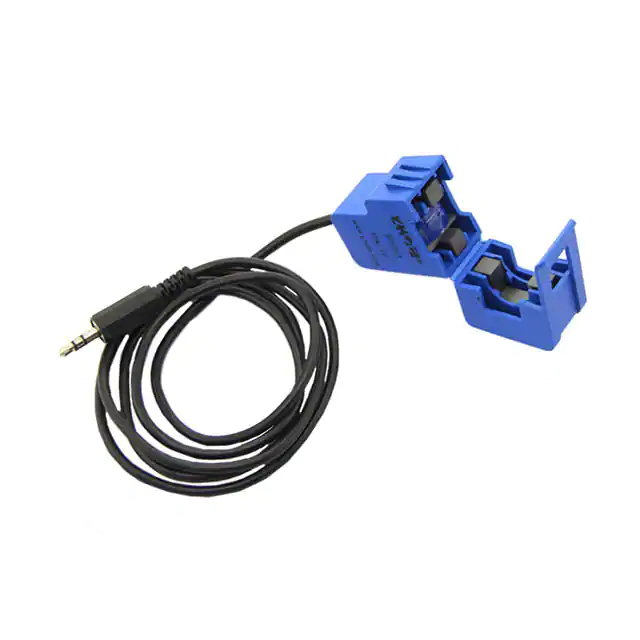

	101990059 CURR SENSE XFMR 10A CHAS MNT Seeed Technology Co., Ltd	366	6.90	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	10 A	-	-	-	-	-	-	Chassis Mount	-	-
	101990064 CURR SENSE XFMR 60A CHAS MNT Seeed Technology Co., Ltd	2,237	6.90	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	60 A	-	-	-	-	-	-	Chassis Mount	-	-
	101990061 CURR SENSE XFMR 1800:1 20A CHAS Seeed Technology Co., Ltd	133	6.90	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	20 A	-	-	1800:1	-	-	-	Chassis Mount	-	-
	101990065 CURR SENSE XFMR 70A CHAS MNT Seeed Technology Co., Ltd	118	6.90	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	70 A	-	-	-	-	-	-	Chassis Mount	-	-

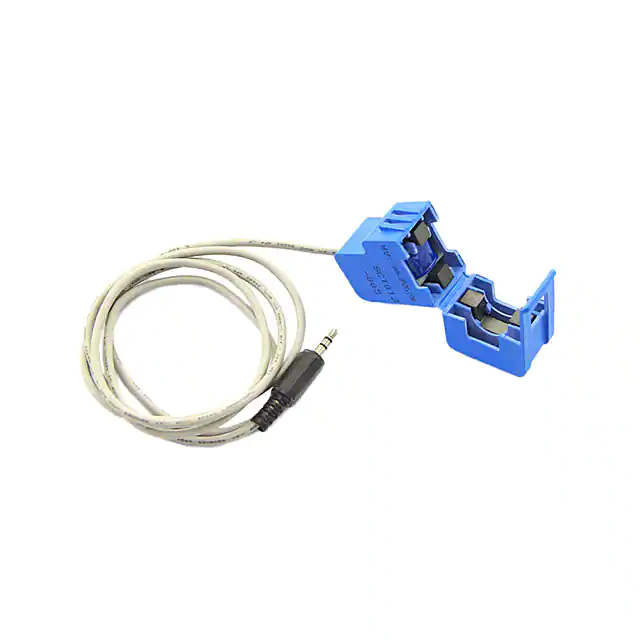

	101990058 CURR SENSE XFMR 5A CHAS MNT Seeed Technology Co., Ltd	120	6.90	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	5 A	-	-	-	-	-	-	Chassis Mount	-	-

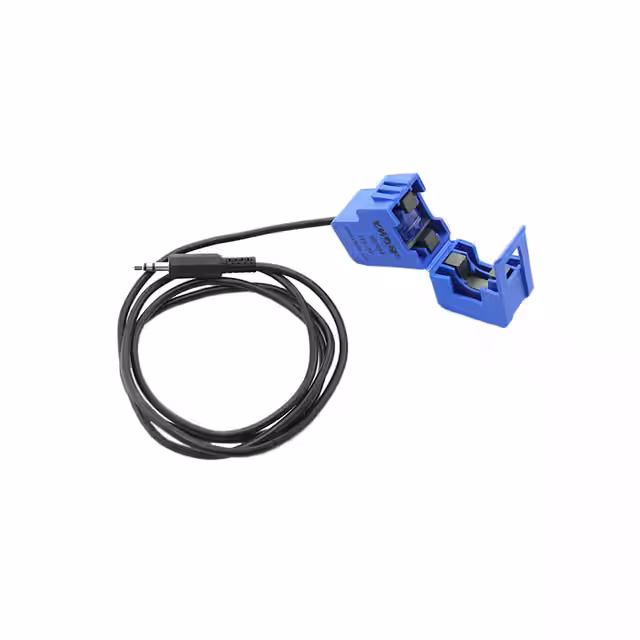

	101990060 CURR SENSE XFMR 15A CHAS MNT Seeed Technology Co., Ltd	113	6.90	RFQ	Datasheet	Bulk	-	Active	-	Non-Invasive (Split Core)	15 A	-	-	-	-	-	-	Chassis Mount	-	-

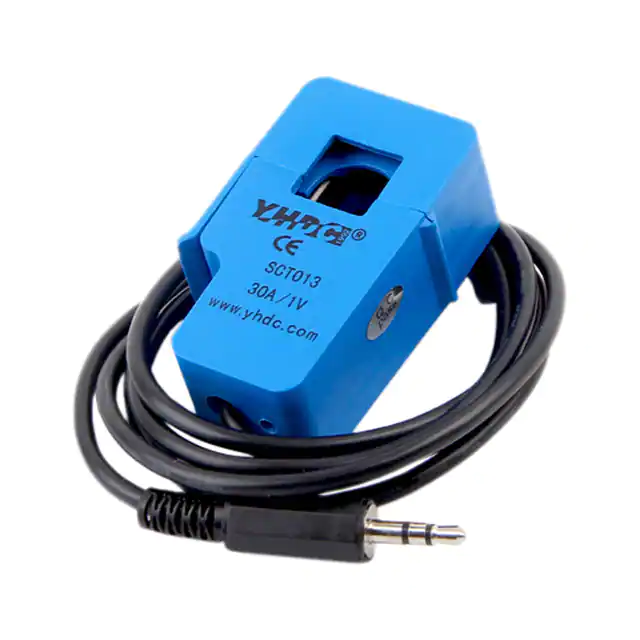

	101990028 CURR SENSE XFMR 1800:1 30A CHAS Seeed Technology Co., Ltd	2,521	9.50	RFQ	Datasheet	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	30 A	-	-	1800:1	-	-	-	Chassis Mount	-	-

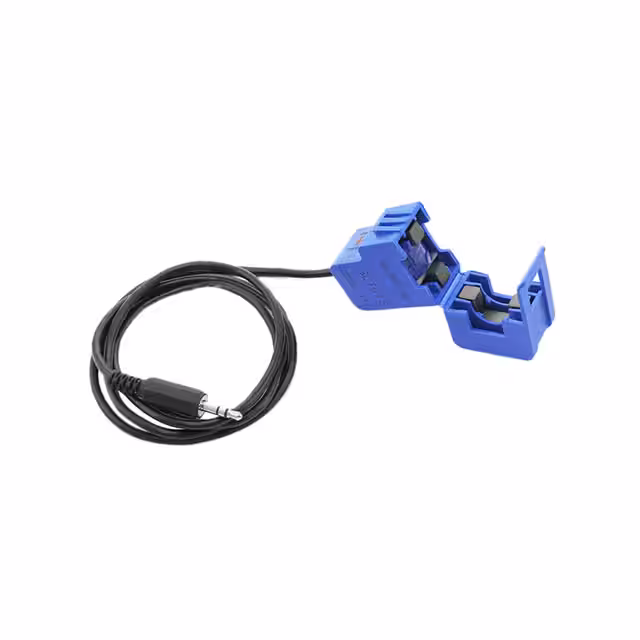

	101990062 CURR SENSE XFMR 25A CHAS MNT Seeed Technology Co., Ltd	3,850	0.00	RFQ	Datasheet	Bulk	SCT013	Obsolete	-	Non-Invasive (Split Core)	25 A	-	-	-	-	-	-	Chassis Mount	-	-

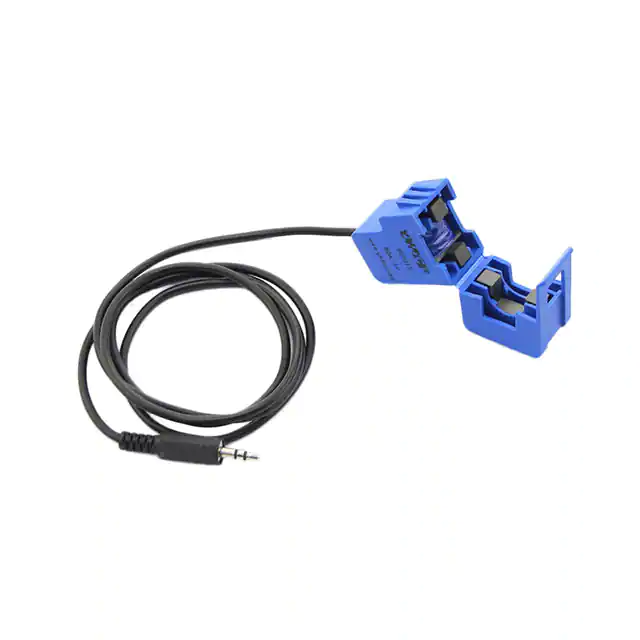

	101990063 CURR SENSE XFMR 50A CHAS MNT Seeed Technology Co., Ltd	2,978	0.00	RFQ	Datasheet	Bulk	SCT013	Obsolete	-	Non-Invasive (Split Core)	50 A	-	-	-	-	-	-	Chassis Mount	-	-
