Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

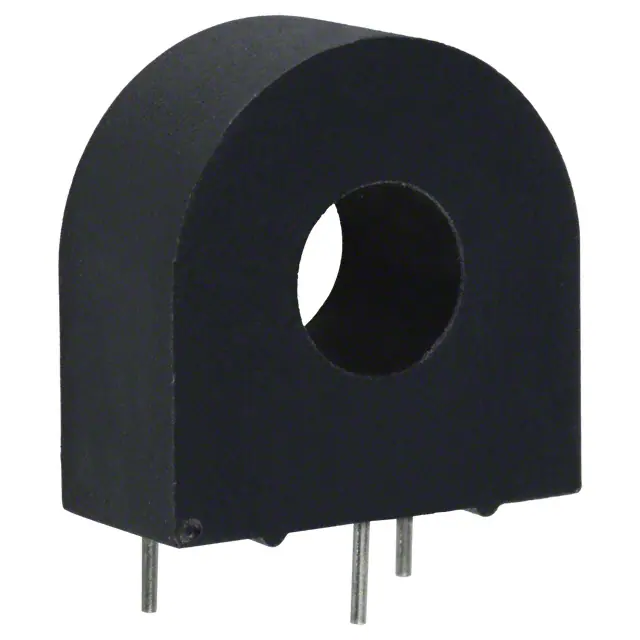

AC1010 CURR SENSE XFMR 10A T/H Talema Group LLC	3,101	5.53	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)
AC1015 CURR SENSE XFMR 15A T/H Talema Group LLC	2,929	5.53	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

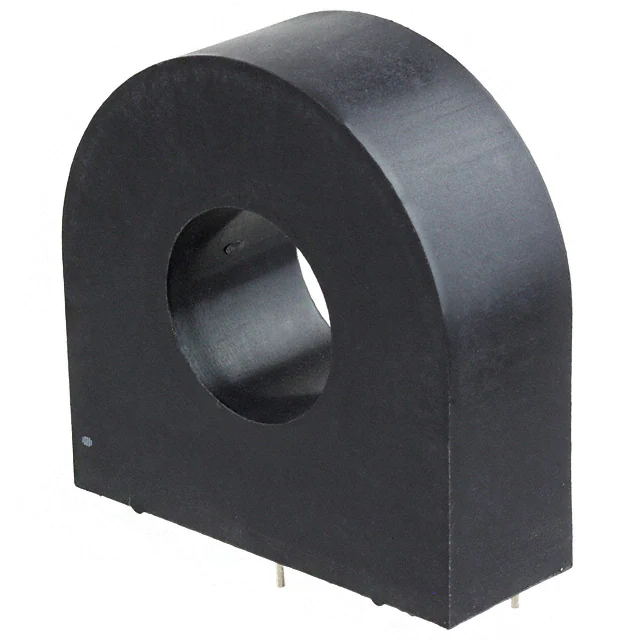

AC1150 CURR SENSE XFMR 150A T/H Talema Group LLC	102	13.25	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189 L x 0.811 W (55.60mm x 20.60mm)	2.189 (55.60mm)

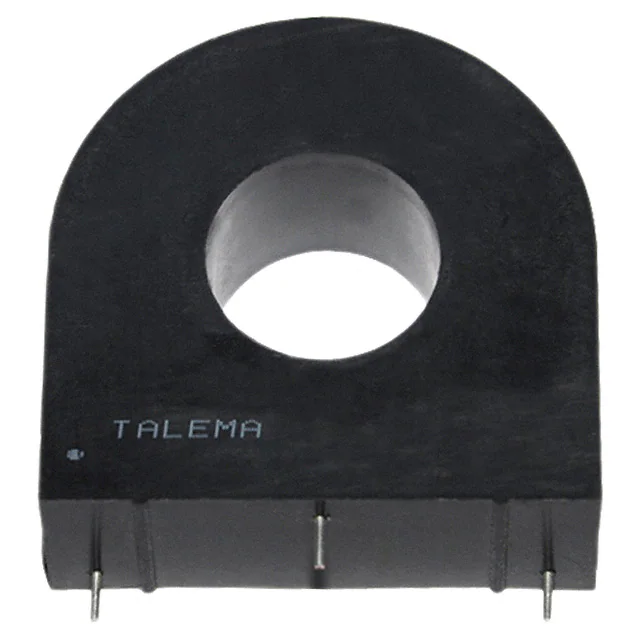

AC1200 CURR SENSE XFMR 200A T/H Talema Group LLC	3,088	13.33	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189 L x 0.811 W (55.60mm x 20.60mm)	2.189 (55.60mm)

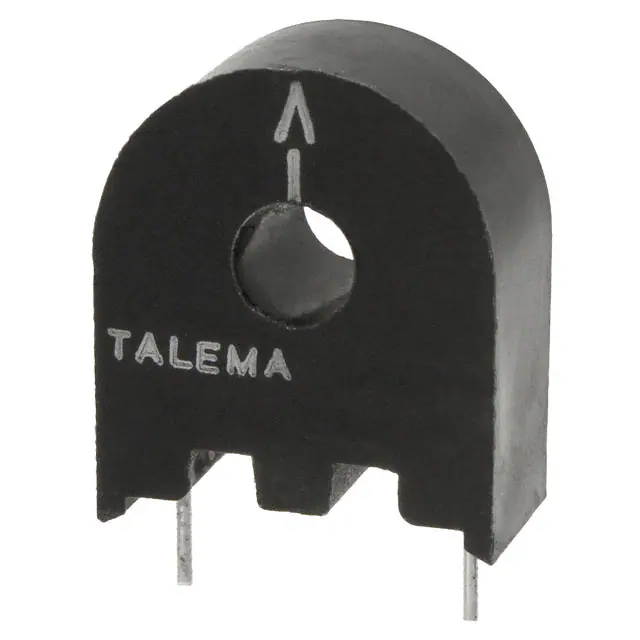

AX-0500 CURR SENSE XFMR 5A T/H Talema Group LLC	2,125	4.52	RFQ	Datasheet	Tray	AX	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	500:1	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AC1005 CURR SENSE XFMR 5A T/H Talema Group LLC	2,142	5.53	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

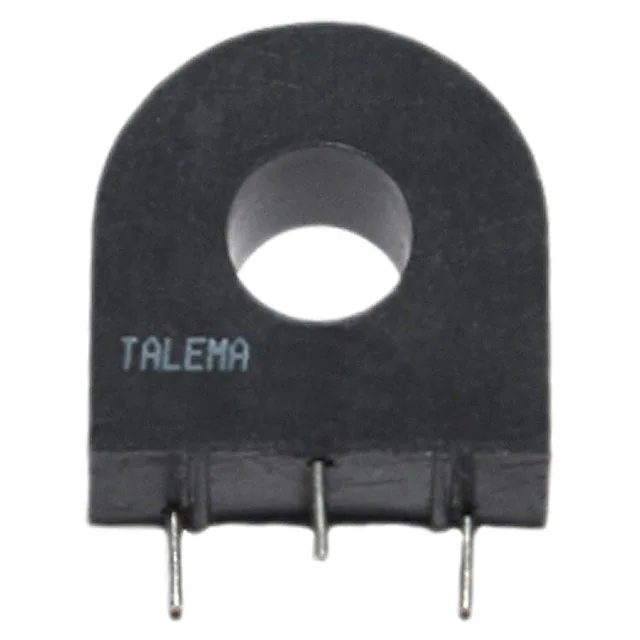

AC1020 CURR SENSE XFMR 20A T/H Talema Group LLC	823	5.53	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

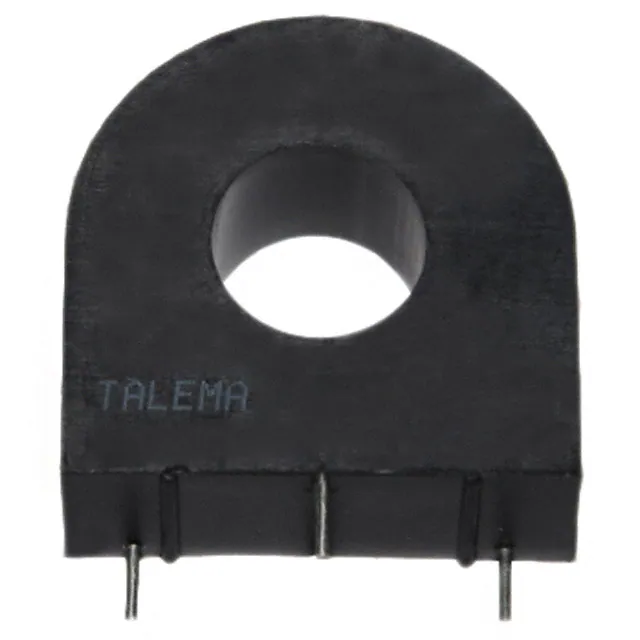

AC1050 CURR SENSE XFMR 50A T/H Talema Group LLC	3,195	6.09	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	49.3Ohm	-	Through Hole	1.374 L x 0.563 W (34.90mm x 14.30mm)	1.374 (34.90mm)

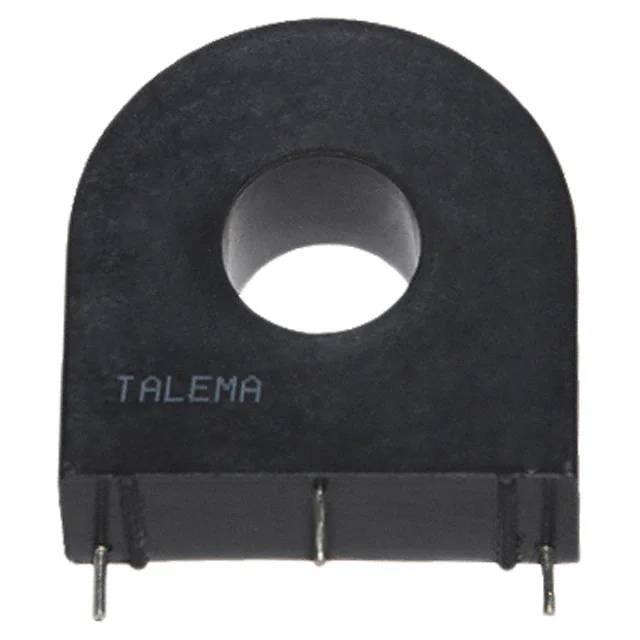

AC1060 CURR SENSE XFMR 60A T/H Talema Group LLC	3,550	7.05	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500 L x 0.626 W (38.10mm x 15.90mm)	1.500 (38.10mm)

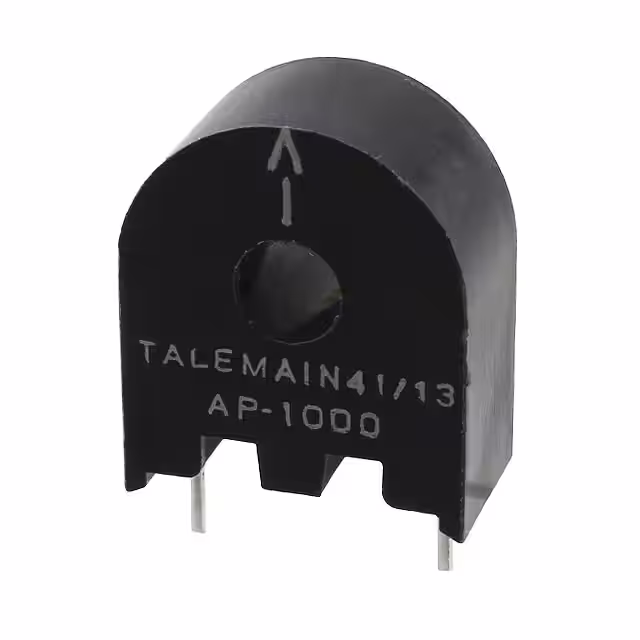

AP-1000 CURR SENSE XFMR 10A T/H Talema Group LLC	3,070	4.73	RFQ	Datasheet	Tray	AP	Active	-	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	70Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AC1030 CURR SENSE XFMR 30A T/H Talema Group LLC	3,284	6.75	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	30 A	-	-	-	1000:1	48Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)

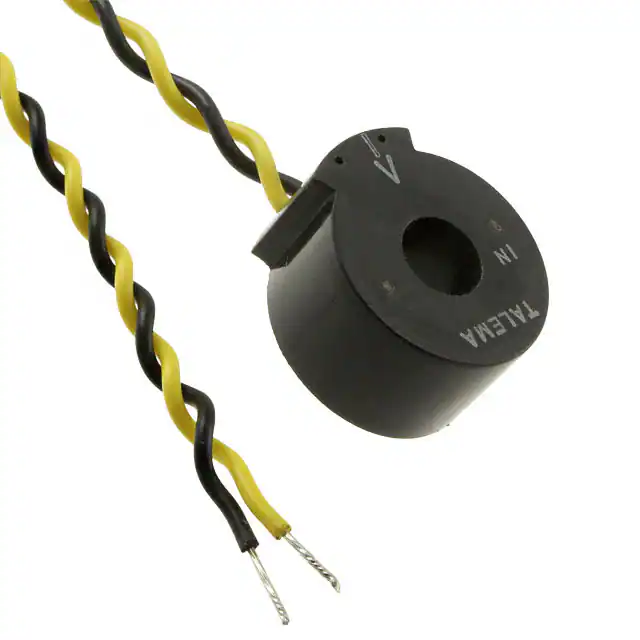

AZ-0500 CURR SENSE XFMR 25A IN-LINE Talema Group LLC	2,413	8.22	RFQ	Datasheet	Tray	AZ	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	25 A	-	-	500:1	-	18Ohm Primary	-	Free Hanging (In-Line)	0.748 Dia (19.00mm)	0.453 (11.50mm)
AC1040 CURR SENSE XFMR 40A T/H Talema Group LLC	3,842	6.09	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	40 A	-	-	-	1000:1	49.3Ohm	-	Through Hole	1.374 L x 0.563 W (34.90mm x 14.30mm)	1.374 (34.90mm)

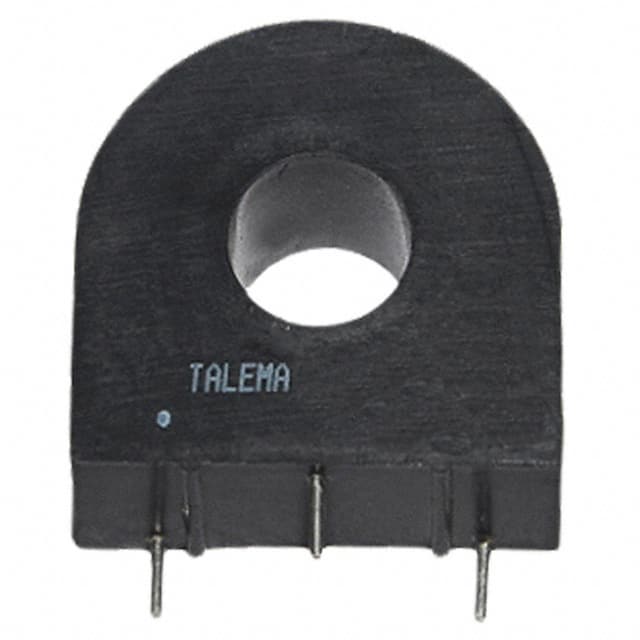

AC1025 CURR SENSE XFMR 25A T/H Talema Group LLC	2,965	6.68	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	25 A	-	-	-	1000:1	48Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)
AC1075 CURR SENSE XFMR 75A T/H Talema Group LLC	2,262	7.05	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500 L x 0.626 W (38.10mm x 15.90mm)	1.500 (38.10mm)

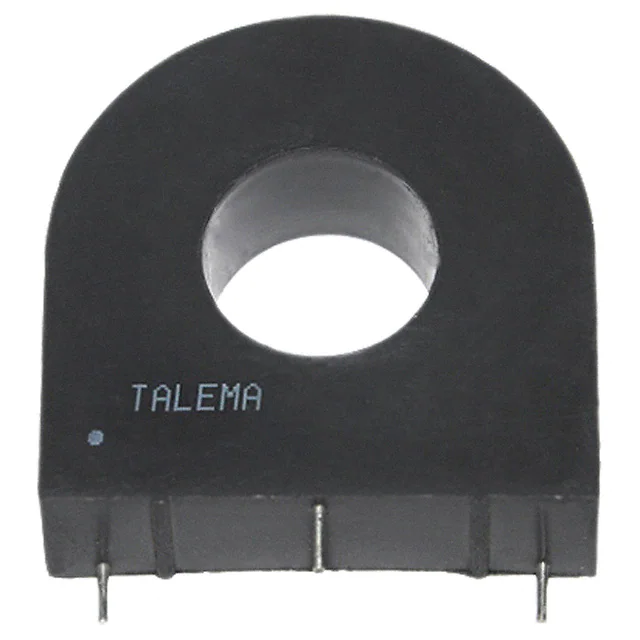

AC1100 CURR SENSE XFMR 100A T/H Talema Group LLC	912	8.19	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	1000:1	21.3Ohm	-	Through Hole	1.752 L x 0.563 W (44.50mm x 14.30mm)	1.752 (44.50mm)

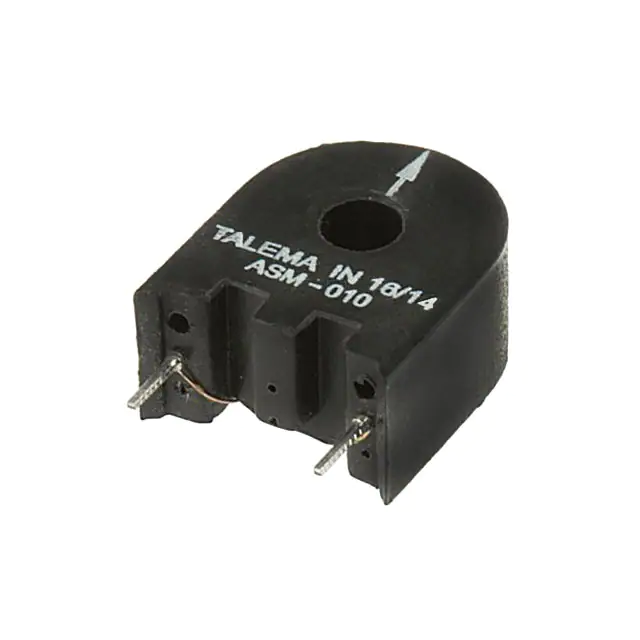

ASM-010 CURR SENSE XFMR 10A T/H Talema Group LLC	3,723	4.87	RFQ	Datasheet	Tray	ASM	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)

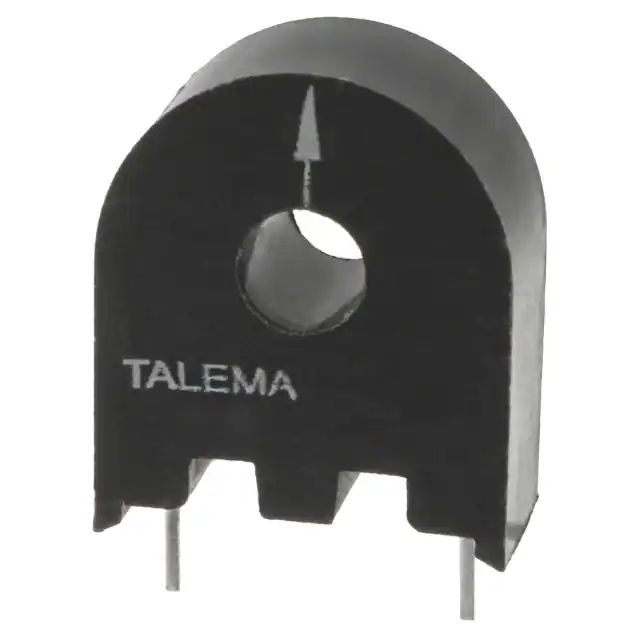

AS-101 CURR SENSE XFMR 1:100 15A T/H Talema Group LLC	2,781	1.54	RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	25 mH	350VµS	1:100	-	1.1Ohm Secondary	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-102 CURR SENSE XFMR 1:200 15A T/H Talema Group LLC	2,821	1.57	RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	700VµS	1:200	-	4.5Ohm Secondary	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-103 CURR SENSE XFMR 1:300 15A T/H Talema Group LLC	2,563	1.63	RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	900VµS	1:300	-	10Ohm Secondary	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
